Dolomite grinding machine, such as raymond mill, superfine grinding mill,ball mill and so on, is one of the most popular mining machines in recent years. Shanghai Clirik Machinery Co., Ltd. supply dolomite grinding machine which can process dolomite well and the material is one-time into powder with characteristics of less power consumption, environmental protection and energy saving. So our dolomite grinding machine is the first choice for milling dolomite

Currently.Now let’s look at the structure and working principle of dolomite grinding machine:

The Structure of Dolomite Grinding Machine:

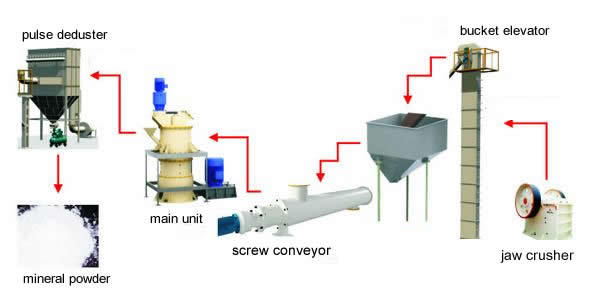

Dolomite grinding machine configuration includes hammer crusher, bucket elevator, storage bin, vibration feeder, grinding machine, inverter classifier, double connected cyclone powder collector, pulse dust removal system, high pressure blower, air compressor, electrical control system.

The Working Principle of Dolomite Grinding Machine:

When working, Main engine motor of grinding machine makes spindle and rotary table rotate by speed reducer, and roller pin on the edge of the turntable drives dozens of grinding roller to rotate in the grinding ring.The material enters the storage bin through the elevator, after crushed by hammer crusher into small particles, and then through the feed tube vibration feeder and tilt, the dolomite particles are evenly sent to the upper part of the turntable.Dolomite particles scatter around the circle under the action of centrifugal force, fall into the mill ring to be hit and grinded by ring roll, and become dolomite powder after being processed by ring Road with three layers. The high pressure air blower can take the external air suction machine through the suction action, and the crushed dolomite powder is selected into the powder machine. Rotating impeller in powder selecting machine make coarse dolomite powder fall and grinded again. Fine powder meet the requirements go into the cyclone dust collector along with air flow, and discharged by Lower unloading valve to be final fine dolomite powder. Then air stream with a small amount of fine dust discharge through fan and muffler after cleaned by the pulse filter.
